EU11

General Purpose Single Phase TEFC J-Face/Rem Base Motor

Item #102199927

50/60 Hz

208-230 & 220 Voltage Rating

J-Face/Rem Base Mount

TEFC Enclosure

56J Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

Baldor-Reliance JL3515A

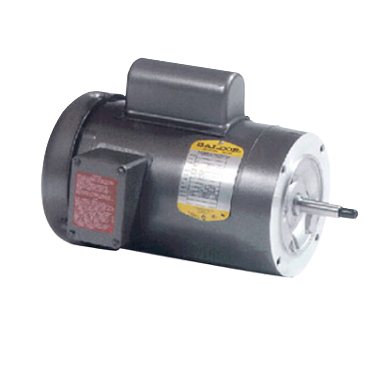

Single Phase Jet Pump Motor

Item #101000018

each

Compare

Leeson 113641.00

AC Motor

Item #102187043

each

Compare

Weg Electric Corp. 00236ES1BJPR56J-S

Jet Pump "J" - TEFC

Item #112705699

each

Compare

Product Details

Specifications

Motor Application	General Purpose, Pump Motor
Voltage Rating	460, 230, 208, 208-230 & 220
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Phase	Single Phase
Service Factor	1.15
HP	2
Full Load rpm	2850 rpm, 3450 rpm
Full Load Amps	9.6-9
Thermal Protection	Automatic Reset
RPM	3600 rpm
Frame	56, 56J
Poles	2
Duty	Continuous Duty
Mounting	J-Face, J-Face/Rem Base
Insulation	F
Hz	60 Hz, 50/60 Hz
Enclosure	TEFC
Drive End Bearing	BALL
Open End Bearing	BALL
C Dimension	13.3 in
Weight	38.0 LB
EAN or UPC	786382054076
