- 2" Shaft, 2.5" Base to Center, Contact Seals, Setscrew Locking, Non-Expansion Type
description

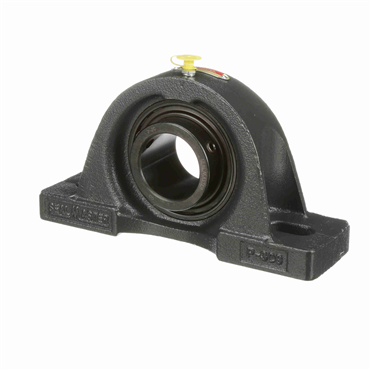

- The Fafnir YASM medium-duty pillow blocks feature Fafnir's GYM-KRRB bearing inserts. These pillow blocks are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty pillow blocks incorporate premium features designed to extend bearing life and will replace competitive designs.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| End Type | Open End |
| Housing Construction | 1 Piece |
| Locking Device | Setscrew Locking Collar |
| Base Width | 2 5/32 in |
| Housing Material | Cast Iron |
| Bearing Design | Non-Expansion |
| Seal Type | Contact Seals |
| Mounted Unit Duty | Medium-Duty |
| Series | YASM Series |
| Pillow Block Type | Thru-Bolt |
| Bolt Hole Spacing Range [Min] | 5 25/32 in |
| Bolt Hole Spacing | 6 15/16 in |
| Bolt Size | 5/8 in |
| Bolt Hole Spacing Range [Max] | 8 3/32 in |
| Inch/Metric | Inch |
| Base Height | 13/16 in |
| Insert Type | Steel Insert |
| Base Length | 8 3/4 in |
| Lubrication | Relubricatable |
| Length Through Bore | 2.1875 in |
| Collar O.D. | 2.747 in |
| Bearing Type | Ball Bearing |
| Housing Height | 4 31/32 in |
| Bearing Insert | GY1200KRRB |
| Overall Width | 2 7/16 in |
| Bolt Holes | 2 |
| Shaft Dia. | 2 in |
| Weight | 8.05 LB |
| EAN or UPC | 87796196780 |
