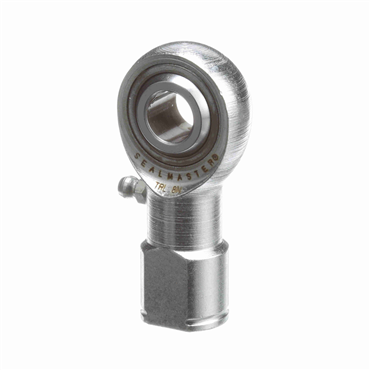

- Female Rod End, Left Hand, Precision Grade, 1/2" Bore, 1/2-20 Thread, Regreasable
| Ball Material | Tin Nickel Plated Carbon Steel, Case Hardened |
| Ball Dia. | 0.937 in |
| Head Diameter | 1.312 in |
| Housing Width | 1/2 in |
| Insert Material | Brass |
| Misalignment Range | ±6° |
| Lube Fitting | w/ Lube Fitting |
| Length Through Bore | 0.625 in |
| Bore Size | 0.5 in |
| Static Load Rating [Max] | 7400 lbf |
| Ball Flat Dia. | 0.698 in |
| Thread Pitch | N/A |
| Grade | Precision |
| Housing Material | Carbon Steel, Protective Coated for Corrosion Resistance |
| Across Wrench Flats | 3/4 in |
| Threads per Inch | 20 |
| Base Dia. | 7/8 in |
| Lubrication | Relubricatable |
| Bearing Type | Plain Bearing |
| Thread Size | 1/2 |
| Thread Type | UNF |
| Right / Left Hand | Left Hand |
| Weight | 0.26 LB |
| EAN or UPC | 637400176105 |
