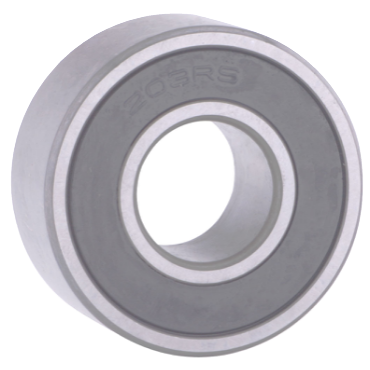

- 20 mm ID x 47 mm OD x 13/16" Wide
- Double Sealed (Contact)
- ABEC 1
- Plastic Cage
- Normal Clearance
applications
- Pumps
- Compressors
- Centrifuges
features
- Inner and outer ring raceway
- Axial load capacity increases with increasing contact angle
- Suitable for simultaneously acting radial and axial loads
compliances
- 0
| Radial Internal Clearance | Normal |
| Inner Ring Width | 0.79 in, 20 mm |
| Ball Material | Steel |
| Lubricant | Polyurea Base |
| Width | 20.638 mm |
| O.D. Type | Straight |
| Rows of Balls | Double |
| Locking Device | No Locking Device |
| Contact Angle | 32° |
| Cage Type | Plastic |
| Series | 322 |
| Material | Steel |
| Inch/Metric | Metric Bore |
| Dynamic Load Rating | 4500 lbf |
| icNumber | 7696014 |
| Capacity | Standard Capacity |
| Enclosure | Double Sealed |
| Bore Type | Round Bore |
| Seal Type | Contact Seals |
| Temperature Range [Max] | 230 °F |
| Temperature Range [Min] | -22 °F |
| No. in Set | Single Bearing |
| I.D. | 20 mm |
| Bearing Design | Converging Angle Design |
| O.D. | 47 mm |
| Flush Ground | No |
| Precision Level | Standard (ABEC 1) |
| Special Features | Grease for Medium Temperatures |
| Seal Material | Synthetic Rubber w/Steel Reinforcement |
| Preload Level | None |
| Static Load Rating [Max] | 2700 lbf |
| Cage Material | Plastic |
| Snap Ring | No Snap Ring |
| Precision | Standard |
| Radial Internal Clearance Specification | Normal Clearance |
| Bearing Type | Angular Contact |
| Outer Ring Width | 13/16 in |
| Weight | 0.352 LB |
| EAN or UPC | 7316570086096 |
