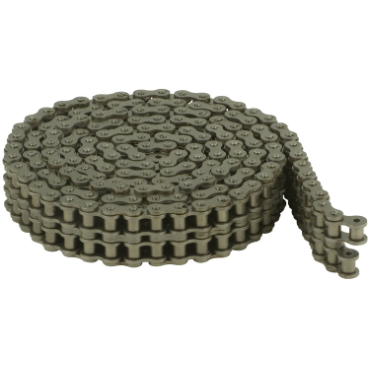

Heavy Series chains incorporate the usual Renold performance-enhancing features including solid bushings, ball drifted plate holes, shot peening, and optimum interference fits. The gearing dimensions of Heavy Series chain are identical to our standard ANSI single-strand chains and will run on standard sprockets. The larger transverse pitch of double- and triple-strand chains with heavy-duty side plates (H or HV Series) require special sprockets.
features
Made in accordance with ANSI B29.1 standards
Designed and built to provide maximum strength and wear life
Solid, cold forged bushings
Solid rollers
Wide waist link plates
Anticollapse bushing design
Pin Material
Carbon Steel
Link Plates Height
0.691 in
Duty
Heavy Series
Material
Carbon Steel
Chain No.
60
Side Bow
No
Chain Pitch
0.75 in
Self-Lubricating
No
Pin Diameter
0.234 in
Pin Overall Length
2.243 in
Link Plates Thickness
1/8 in
Pins & Rollers
Standard
Chain Series
60, 60-2, 60-3, 60-4, 60-6, 60-8
Rated Working Load
3750 lbs
Chain Construction
Riveted
Roller Dia.
0.469 in
Chain Type
ANSI
No. of Strands Across
2
Package Type
10 Foot Box
Roller Width
1/2 in
Weight
2.41 LB
EAN or UPC
6623900536659
