702151 / Air Handling

SPD-47

702151 / Air Handling
Item #101180911
  • Felt Labyrinth Seal Type
702151 / Air Handling
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Felt Labyrinth Seal Type

description

  • Double-extended inner race and dual-locking setscrews.

features

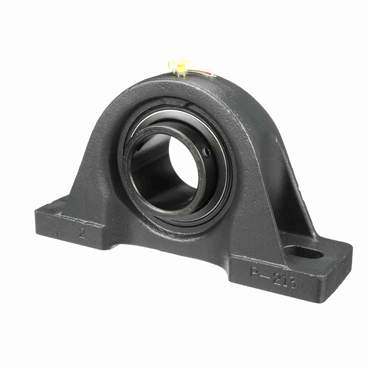

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Expansion No
Seal Type Felt Labyrinth Seal
Platform Air Handling
Bolt Center Max (in) 10.75
Bearing Insert Coating Black Oxide Coated
Overall Height (in) 7.188
Foot Height (in) 1
Replaceable Insert Yes
Bore Shape Straight
Housing Material Cast Iron
Misalignment Type Static Only
Duty Series Standard
Base Width (in) 3.375
Retainer Type Land Riding Retainer
Bolt Size (in) 0.75
Overall Length (in) 13
Insert No. 2-215D
Relubricatable Yes
Maximum Operating Temperature 220
Measure Units Inch
Outer Ring Land Profile Standard
End Cap No
Inner Ring OD (in) 3.641
Centerline to Front Face (in) 1.75
Housing Base Solid
Bolt Center Min (in) 9.25
Bore Size - Inch 2.938
Inner Race Length (in) 3.498
Lubrication Lithium Complex NLGI 2 Grease
Insert Material 52100 Bearing Steel, Black Oxided
Housing Construction One Piece
Weight 27.0 LB
EAN or UPC 662461015827
