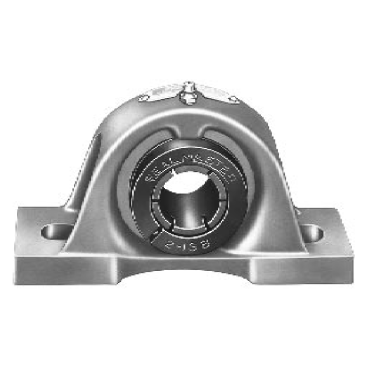

705500 / Gold Line Ball Bearing

NPL-23T

705500 / Gold Line Ball Bearing
Item #101179880
  • Felt Labyrinth Seal Type
705500 / Gold Line Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Felt Labyrinth Seal Type

description

  • Generally used where low shaft-to-center dimension exist

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Overall Height (in) 3.688
Expansion No
Maximum Operating Temperature 220
Centerline to Front Face (in) 1.063
Bolt Center Min (in) 4.688
Collar OD (in) 2.563
Insert No. 2-17T
Lubrication Lithium Complex NLGI 2 Grease
Bolt Center Max (in) 5.313
Measure Units Inch
Bore Shape Straight
Outer Ring Land Profile Standard
Platform Gold Line Ball Bearing
Misalignment Type Static Only
Bore Size - Inch 1.438
Replaceable Insert Yes
Relubricatable Yes
Insert Material 52100 Bearing Steel, Black Oxided
Radial Static Load Capacity (lb) 3493
Bolt Size (in) 0.5000
Radial Dynamic Load Capacity (lb) 5782
End Cap No
Duty Series Standard
Housing Material Cast Iron
Bearing Insert Coating Black Oxide Coated
Foot Height (in) 0.563
Retainer Type Land Riding Retainer
Base to Center Height (in) 1.813
Inner Race Length (in) 1.75
Bolt Center-to-Center Length (in) 4.6875 to 5.3125
Brand. Sealmaster
Overall Length (in) 6.563
Housing Base Solid
Seal Type Felt Labyrinth Seal
Housing Construction One Piece
Base Width (in) 1.875
Weight 4.4 LB
EAN or UPC 662461030554
