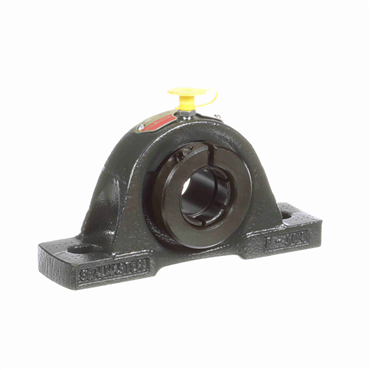

NP-T Series Standard-Duty Pillow Block

NP-32T

NP-T Series Standard-Duty Pillow Block
Item #101179563
  • Felt Labyrinth Seal Type
NP-T Series Standard-Duty Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Felt Labyrinth Seal Type

description

  • Most widely used, normal-duty pillow block with high base-to-shaft centerline dimensions.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Retainer Type Land Riding Retainer
Bolt Center Max (in) 7
Bearing Insert Coating Black Oxide Coated
End Cap No
Housing Base Solid
Bolt Center Min (in) 6.5
Insert Material 52100 Bearing Steel, Black Oxided
Inner Race Length (in) 2.25
Overall Height (in) 5
Misalignment Type Static Only
Platform Gold Line Ball Bearing
Lubrication Lithium Complex NLGI 2 Grease
Housing Material Cast Iron
Bore Shape Straight
Relubricatable Yes
Bolt Size (in) 0.625
Collar OD (in) 3.5
Duty Series Standard
Overall Length (in) 8.625
Bore Size - Inch 2
Seal Type Felt Labyrinth Seal
Expansion No
Maximum Operating Temperature 220
Foot Height (in) 0.75
Base Width (in) 2.375
Housing Construction One Piece
Measure Units Inch
Brand. Sealmaster
Outer Ring Land Profile Standard
Centerline to Front Face (in) 1.375
Insert No. 2-2T
Replaceable Insert Yes
Weight 10.65 LB
EAN or UPC 662461029756
