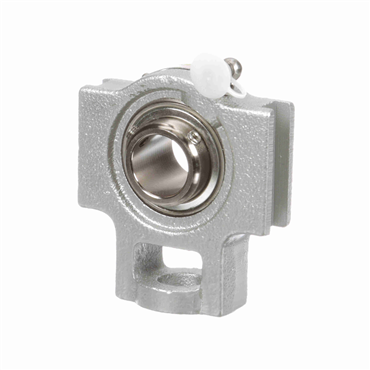

CRSTF-PN16

711229 / Setscrew

Item #101997461

Auto Replenish

each One-time purchase

Product Details

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
Fluoropolymer coated cast iron housing for corrosion resistance.
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Specifications

Certifications	IP69K
Overall Height (in)	3.5
Centerline to Front Face (in)	0.813
Radial Dynamic Load Capacity (lb)	2801
Replaceable Insert	Yes
Housing Construction	One Piece
Maximum Operating Temperature	220
Outer Ring Land Profile	Standard
Bore Size - Inch	1
Bearing Insert Coating	Phosphorus Nickel Coated
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Measure Units	Inch
Platform	PN Gold
Misalignment Type	Static Only
Relubricatable	Yes
Housing Bolt Through Hole (in)	0.75
Slot Width (in)	0.5313
Slot Spacing	3.5
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Seal Type	High Performance Triple Lip Seal
Overall Length (in)	3.8125
Retainer Type	Land Riding Retainer
End Cap	Yes
Overall Width (in)	1.375
Housing Material	Flouropolymer Coated Cast Iron
Series	CRSTF
Expansion	No
Duty Series	Standard
Bore Shape	Straight
Inner Ring OD (in)	1.375
Housing Width (in)	1.5
Insert No.	PN-16
Weight	2.6 LB
EAN or UPC	662461337745
