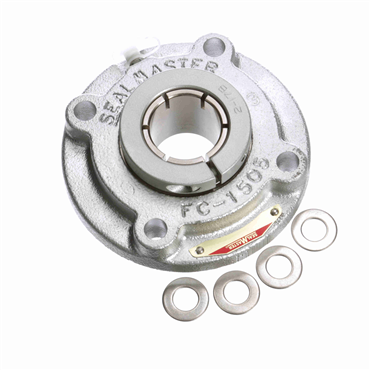

CRFCF-PN28

711347 / Setscrew

Item #102301087

Auto Replenish

each One-time purchase

Product Details

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
Fluoropolymer coated cast iron housing for corrosion resistance.
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Specifications

Centerline to Front Face (in)	1.188
Housing Type	Flange, Piloted
Seal Type	High Performance Triple Lip Seal
Foot Height (in)	0.438
Inner Race Length (in)	1.938
Misalignment Type	Static Only
Duty Series	Standard
Pilot Configuration	No Pilot
Relubricatable	Yes
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Maximum Operating Temperature	220
End Cap	Yes
Bore Size - Inch	1.75
Retainer Type	Land Riding Retainer
Pilot Diameter (in)	4.25
Bolt Center Diameter (in)	5.125
Housing Material	Flouropolymer Coated Cast Iron
Inner Ring OD (in)	2.297
Replaceable Insert	Yes
Bolt Center-to-Center Length (in)	5.1250
Measure Units	Inch
Bearing Insert Coating	Phosphorus Nickel Coated
Insert No.	PN-28
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Housing Construction	One Piece
Expansion	No
Bolt Size (in)	0.4375
Inner Race Heat Treat Method	Zone-Hardened
Outer Ring Land Profile	Standard
Housing OD (in)	6.125
Weight	6.0 LB
EAN or UPC	662461338629
