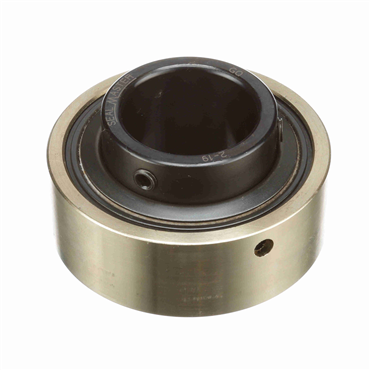

701169 / Gold Line Ball Bearing

AR-2-19

701169 / Gold Line Ball Bearing
Item #101178009
  • Straight Bore Shape
701169 / Gold Line Ball Bearing
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Straight Bore Shape

description

  • Replacement insert for expansion-type units.

features

  • Bearing insert installed in brass expansion ring
  • Skwezloc® concentric locking for near perfect concentricity
  • Felt labyrinth seal and flinger for dry & dusty environment
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Maximum Operating Temperature 220
Measure Units Inch
Bearing Insert Coating Black Oxide Coated
Duty Series Standard
Bore Shape Straight
Rolling Element Ball Bearing
Bore Size - Inch 1.563
Expansion No
Centerline to Front Face (in) 1.188
Cage Material Brass
End Cap No
Outer Race OD 3.375
Misalignment Type Static Only
Lubrication Lithium Complex NLGI 2 Grease
Inner Race Length (in) 1.938
Radial Dynamic Load Capacity (lb) 7340
Series AR
Outer Race OD (in) 3.375
Radial Static Load Capacity (lb) 4467
Inner Race Heat Treat Method Zone-Hardened
Platform Gold Line Ball Bearing
Outer Race Width (in) 1.172
Precision Rating ABEC 1
Relubricatable Yes
Overall Width (in) 1.938
Set Screw Thread 5/16-24
Inner Ring OD (in) 2.063
Radius 0.062
Seal Type Felt Labyrinth Seal
Retainer Type Land Riding Retainer
Outer Ring Land Profile Standard
Weight 2.15 LB
EAN or UPC 662461009574
