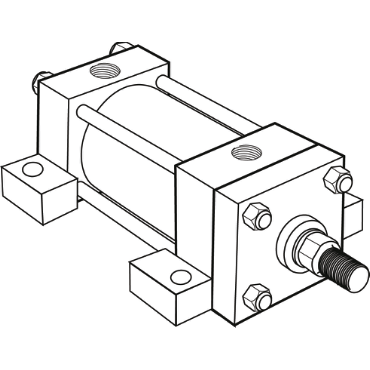

The Schrader Bellows Clean Plus cylinder offers a great economical alternative to chrome-plated or stainless steel cylinders used in caustic washdown applications and corrosive environments. Fast delivery in a variety of bores and mounting styles are available.
applications
Washdown service
Food industry
features
Stainless steel piston rod
Nonlube
NFPA interchangeable
compliances
0
Cushions
Noncushioned
Port Location
12 O'clock on Each End (Standard)
Port Type
NPT
Rod Material
Coated Aluminum
Mounting Style Description
Side Lug
Rod End Style
Male, Small
Magnetic Piston
No
Seal Material
Buna-N
Origin
Coated Aluminum NFPA
Rod Diameter
5/8 in
Series
Econo-Ram II™ Clean Plus
End Type
Single Rod
Seal Design
Buna-N Rubber
Port Size
3/8
Bumpers
w/o Bumpers
Lube Specification
Non Lube Design
Mounting Style
MS2
Cylinder Material
Aluminum, LECTROFLUOR® Coated
Rod End Thread
7/16-20
Cylinder Bore Size
2 in
Cylinder Style
Tie Rod, NFPA
Weight
5.0 LB
