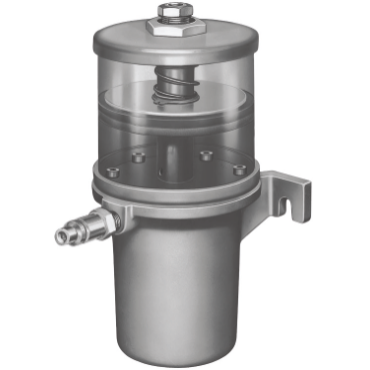

Air-Operated (Single Stroke) Grease Pump

Lincoln Industrial

82886

Air-Operated (Single Stroke) Grease Pump

Item #102091695

For Cento-Matic Automated Lubrication Systems
Bare Grease Pump
20:1 Pump Ratio
Single Stroke
492 cc Reservoir Capacity

1,200-3,500 psig Operatong Pressure Range

3-Way Air Valve required

Refill with manual pump with Model 645006 coupler

+ Show More

Air-Operated (Single Stroke) Grease Pump

Auto Replenish

each One-time purchase

Product Details

For Cento-Matic Automated Lubrication Systems
Bare Grease Pump
20:1 Pump Ratio
Single Stroke
492 cc Reservoir Capacity

features

Uses air for forward return stroke but dispenses lubricant on forward stroke only
Return stroke vents lubricant pressure through included check/vent valve
Translucent reservoir has spring-loaded follower

includes

Filler fitting for refilling reservoir

Specifications

Overall Width	5 1/4 in
Pump Style	Bare Pump
Pump Type	Grease Pump
Operating Pressure Range	1,200 psig to 3,500 psig
Pump Ratio	20:1
Air Inlet NPTF (f)	1/4 in
Air Valve Required	3-Way
Lube Outlet	1/4" NPTF (f)
Delivery	.45 in3/min
Lubricant Type	Grease
Reservoir Capacity [Nom]	492 cc
Overall Height	10.375 in
Overall Length	6 in
Weight	27.5 LB
