HM10CG

UNIBAL Commercial Series

Item #101999602

Auto Replenish

each One-time purchase

Alternate Products

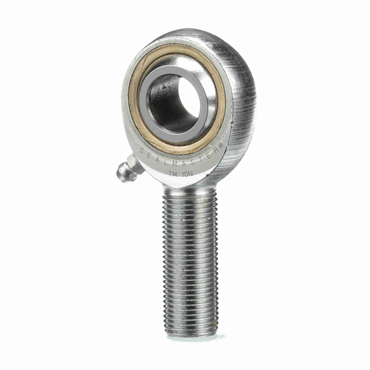

Sealmaster TM10N

TM-N Series Three-Piece Commercial Male Rod End

Item #101182953

each

Compare

Spherco TM10N

TM-N Series Four-Piece Commercial Male Rod End

Item #101800812

each

Compare

Boston Gear HM-10CG

Right Hand Male Rod End, Commercial Grade

Item #101836018

each

Compare

Alinabal VM10B2 8

V-Series Male Rod End

Item #104601388

each

Compare

Product Details

Specifications

Bearing Type	Plain Bearing
Right / Left Hand	Right Hand
Ball Material	Case Hardened Steel Plated for Corrosion Resistance
Grade	Commercial
Lube Fitting	w/ Lube Fitting
Thread Size	5/8
Misalignment Range	±6°
Housing Material	Low Carbon Steel Plated for Corrosion Resistance
Threads per Inch	18
Length Through Bore	0.75 in
Ball Flat Dia.	27/32 in
Static Load Rating [Max]	8050 lbf
Lubrication	Relubricatable
Liner	N/A
Bore Size	0.625 in
Thread Type	UNF
Insert Material	Oil Impregnated Bronze
Head Diameter	1 1/2 in
Thread Pitch	N/A
Housing Width	9/16 in
Ball Dia.	1 1/8 in
Weight	0.41 LB
EAN or UPC	637400156381
