Climax Metal
G2MSCC-06-06

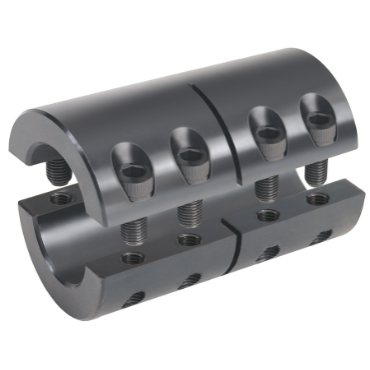

Metric Two-Piece Industry Standard Clamping Coupling – G2MSCC Series
Item #105470291
Alternate Products
- Two Piece Metric Coupling
- 6 mm Bore
- 18 mm OD
- 30 mm Length
- Black Oxide Steel
features
- Effective on hard and soft shafts
- Design fully engages the shaft without marring
- High axial load and torque capacity
- Black oxide provides some corrosion resistance
| Outside Dia. [Min] | 18 mm |
| Screw Sizes | M3 x 8 |
| Bore B | 6 mm |
| O.D. | 18 mm |
| Recessed Screw | No |
| Length | 30.000 mm |
| Screw Material | Steel |
| Screw Size | M3 x 8 |
| Outside Dia. | 18 mm |
| No. of Cap Screws | 8 |
| Material | Steel, ASTM A108 |
| Keyway | No Keyway |
| Inch/Metric | Metric |
| Coupling Type | Two-Piece Clamping Coupling |
| Bore A | 6 mm |
| Screw Style | Hex Socket Cap Screw |
| Finish | Black Oxide |
| Weight | 0.09 LB |
| EAN or UPC | 44861036181 |
