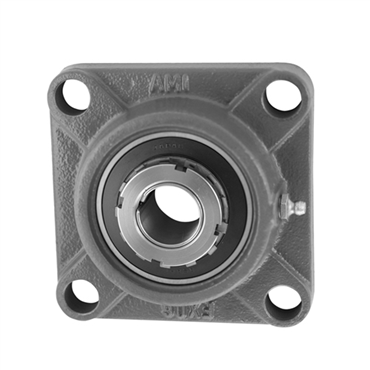

Adapter Sleeve Locking Flange Unit

UKF313+H2313

Adapter Sleeve Locking Flange Unit
Item #101543496
  • 60 mm Shaft Diameter
  • 208 mm Housing Length
  • Cast Iron Housing Material
Adapter Sleeve Locking Flange Unit
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 60 mm Shaft Diameter
  • 208 mm Housing Length
  • Cast Iron Housing Material
Relubricatable Yes
Style 4-Bolt Flange
Duty Series Heavy
Flange Thickness 22 mm
Housing Construction 1 Piece
Housing Height 208 mm
Housing Material Cast Iron
Overall Width 71 mm
Bolt Size M20
Housing Length 208 mm
Flange Style 4-Bolt
Lubrication Fitting Tap 1/8-27 NPT
Temperature Range [Max] 212 °F
Inch/Metric Metric
End Type Open End
Temperature Range [Min] 5 °F
Lubrication Relubricatable
Length Through Bore 65 mm
Bolt Hole Spacing 166 mm
Shaft Dia. 60 mm
Bearing Design Non-Expansion
Locking Device Adapter Mounted
Insert Material AISI 52100 Steel
Housing Width 58 mm
Flange Type 4-Bolt Flange
Seal Type Contact Seals
Duty Heavy-Duty
Bolt Hole Size 23 mm
Bearing Type Ball Bearing
Locking Style Adapter Sleeve
Mounted Unit Duty Heavy-Duty
Bolt Circle Dia. 234.8 mm
Weight 19.06 LB
EAN or UPC 808250272143
