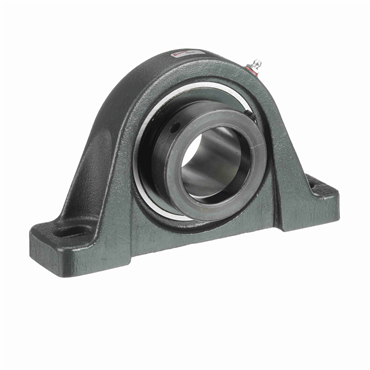

Wide Inner Ring Cast Iron Housing Material Pillow Block

UGP212-36

Wide Inner Ring Cast Iron Housing Material Pillow Block
Item #101527939
  • 2 1/4 in Shaft Diameter
  • 2 3/4 in Center Line To Base Dimension
  • 6 7/8 in Bolt Hole Spacing Range [MIN]
Wide Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 2 1/4 in Shaft Diameter
  • 2 3/4 in Center Line To Base Dimension
  • 6 7/8 in Bolt Hole Spacing Range [MIN]
Shaft Dia. 2 1/4 in
Locking Device Eccentric Locking Collar
Pillow Block Type Thru-Bolt
Bolt Holes 2
Base Length 9 1/2 in
End Type Open End
Bolt Hole Spacing 7 1/4 in
Duty Series Normal
Bolt Hole Length 1 in
Relubricatable Yes
Bolt Size 5/8 in
Seal Type Contact Seals
Bearing Insert UG212-36
Housing No. P212
Housing Height 5 7/16 in
Mounted Unit Duty Normal-Duty
Bearing Type Ball Bearing
Bearing Design Non-Expansion
Lubrication Fitting Tap 1/8-27 NPT
Housing Material Cast Iron
Bolt Hole Spacing Range [Max] 7 5/8 in
Base Height 1 in
Locking Style Eccentric Collar
Lubrication Relubricatable
Bolt Hole Spacing Range [Min] 6 7/8 in
Bolt Hole Width 25/32 in
Inch/Metric Inch
Housing Construction 1 Piece
Base Width 2 3/4 in
Insert Material AISI 52100 Steel
Series UGP200
Length Through Bore 3 1/16 in
Housing P212T
Weight 13.04 LB
EAN or UPC 808250213061
