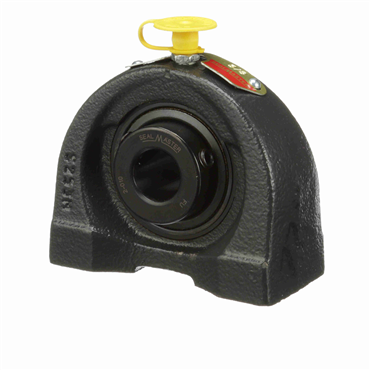

Wide Inner Ring Cast Iron Housing Material Pillow Block

UCTB202-10

Wide Inner Ring Cast Iron Housing Material Pillow Block
Item #101505542
  • 5/8 in Shaft Diameter
  • 1 5/16 in Center Line To Base Dimension
Wide Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 5/8 in Shaft Diameter
  • 1 5/16 in Center Line To Base Dimension
Thread Size 3/8-16
Bearing Insert UC202-10
Housing TB204
Housing No. TB204
Bolt Hole Spacing Range [Min] 2 in
Bearing Design Non-Expansion
Bolt Hole Size 3 in
Bolt Hole Length 1/2 in
Locking Device Setscrew Locking Collar
End Type Open End
Base Height N/A
Relubricatable Yes
Shaft Dia. 5/8 in
Bolt Holes 2
Bolt Hole Spacing Range [Max] 2 in
Housing Height 2 9/16 in
Base Width 1 1/2 in
Lubrication Relubricatable
Insert Material AISI 52100 Steel
Mounted Unit Duty Normal-Duty
Housing Construction 1 Piece
Duty Series Normal
Pillow Block Type Tapped Base
Lubrication Fitting Tap 1/4-28 UNF
Inch/Metric Inch
Seal Type Contact Seals
Locking Style Set Screw
Housing Material Cast Iron
Series UCTB200
Base Length 2 7/8 in
Length Through Bore 1.220 in
Bolt Hole Spacing 2 in
Bearing Type Ball Bearing
Weight 1.18 LB
EAN or UPC 808250104734
