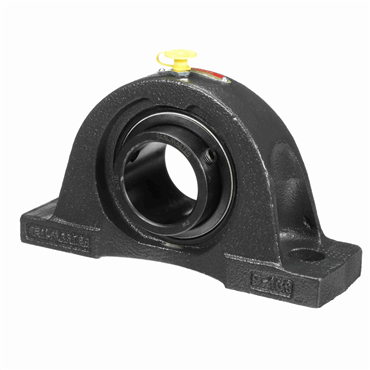

Narrow Inner Ring Cast Iron Housing Material Pillow Block

KHLP210-31

Narrow Inner Ring Cast Iron Housing Material Pillow Block
Item #101502881
  • 1 15/16 in Shaft Diameter
  • 2 3/16 in Center Line To Base Dimension
  • 6 in Bolt Hole Spacing Range [MIN]
Narrow Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1 15/16 in Shaft Diameter
  • 2 3/16 in Center Line To Base Dimension
  • 6 in Bolt Hole Spacing Range [MIN]
Housing Material Cast Iron
Shaft Dia. 1 15/16 in
Mounted Unit Duty Normal-Duty
Housing Construction 1 Piece
Housing Height 4 7/16 in
Relubricatable Yes
Lubrication Fitting Tap 1/8-27 NPT
Bolt Hole Spacing 6 1/2 in
Pillow Block Type Thru-Bolt
End Type Open End
Bolt Size 1/2 in
Bolt Hole Length 1 in
Bolt Hole Spacing Range [Max] 7 in
Base Height 7/8 in
Lubrication Relubricatable
Base Width 2 1/4 in
Bolt Hole Spacing Range [Min] 6 in
Bolt Hole Width 19/32 in
Bearing Type Ball Bearing
Inch/Metric Inch
Insert Material AISI 52100 Steel
Bearing Insert KH210-31
Base Length 8 3/8 in
Bolt Holes 2
Housing No. LP210
Locking Device Setscrew Locking Collar
Locking Style Eccentric Collar
Seal Type Contact Seals
Length Through Bore 1 23/32 in
Bearing Design Non-Expansion
Housing LP210T
Series KHLP200
Duty Series Normal
Weight 6.6 LB
EAN or UPC 808250135394
