- 1.500" Bore
- Fixed Diameter
- Closed Type

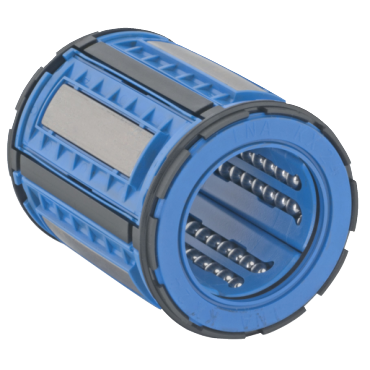

- Super Smart Ball Bushing™ Bearing
description
- This new, patented, self-aligning linear bearing provides twice the load carrying capacity or eight times the travel life of the industry standard. This dramatic increase in load capacity allows for the use of less expensive drive motors, linkages, gears and ball screws. The unique design allows the bearing to maintain its diametrical fit when installed in housings that are soft or slightly out of round.
applications
- End supported applications for spanning or bridging a gap
features
- Can be adjusted to take out diametrical clearance
- Can be mounted in a customized housing
- Travel speeds up to 10 ft/sec
- Interchangeable with industry-standard ball bearings
- Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment
- Available in both imperial and metric sizes
| Material | Delrin |
| Self Aligning | Yes |
| O.D. | 2 3/8 in |
| Shaft Dia. | 1 1/2 in |
| Dynamic Load Rating | 3,880.00 lbf |
| Corrosion Resistant | Optional |
| Recommended Shafting Class | L |
| Length Thru Mounting Hole | N/A |
| Accuracy Class | Precision |
| Seals | None |
| Seal Material | N/A |
| Mounting Hole Size | N/A |
| Distance Between Retaining Rings | 2.422 in |
| Type of Bearing | Ball |
| Style of Bearing | Closed |
| Length | 3 in |
| Distance Between O-Rings | N/A |
| Inch/Metric | Inch |
| Trunion Type | N/A |
| Retaining Ring Groove Width | 0.086 in |
| Center to Shaft | N/A |
| Preload | Yes |
| Weight | 0.99 LB |
| EAN or UPC | 662486109884 |
